Introduction Thank you for interesting our Program Card for brushless motor electronic speed controller. With this device, you can easily set the programming value of ESC. Now you can planar forget the complex and boring program method with the throttle stick of your transmitter. This Program Card has a friendly user interface. It is as small as a business card, so you could put it in your pocket when you are on field.
Specifications
Dimensions (Length x Width x Height): 95 x 57 x 8mm
Weight: 26g

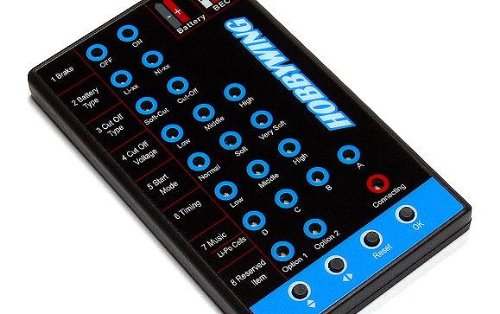

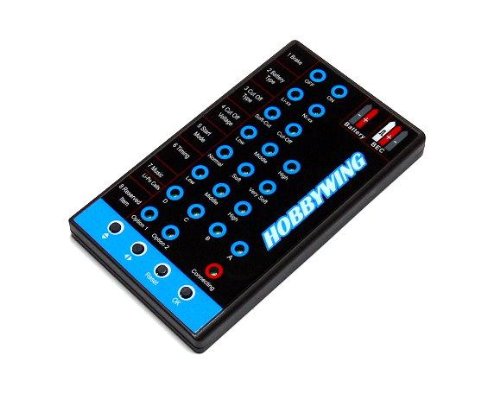

Front Panel
1. Use „up/down“ button to select programming item, use `left/right` button to select item value.
2. Brake: When „Brake“ is ON, the motor will stop quickly after the throttle stick is moved to bottom.
3. Low Voltage Protection Mode (Cutoff Durchschuss):
When „Soft-Uppercut“ is selected, the ESC will reduce the output power; When „Uppercut-Off“ is selected, the ESC will immediately cut off the output power to motor.
4. Low Voltage Protection Threshold (Cutoff Voltage):
For Li-xx battery (Li-ion or Li-poly), the number of battery cells are calculated automatically, Low / Medium / High cutoff voltage of each cell is: 2.6v / 2.85v / 3.1v. For example: 3S Li-poly, when „Medium“ cutoff voltage is set, the cutoff voltage is: 2.85 x 3 = 8.55V.
For Ni-xx battery (NiCd or NiMH), Low / Medium / High cutoff voltages are 0% / 45% / 60% of the anfänglich voltage when the model is power on. (0% means the cut-off function is disabled)
For example: 10 cellls NiMH battery, fully charged voltage is 1.44 x 10 = 14.4V, when „Medium“ value is selected, the cutoff voltage is: 14.4 x 45% = 6.5V.
5. Music/Li-Po Cells:
The 4 LEDs have different meanings for ESC with or without a postfix letter of „HV“.
Dies ist eine spezielle Ausgabe Bundle qua RCECHO Apps Lizenzschlüssel statt mehr Spaß inbegriffen. RCECHO ist ein eingetragenes Brand. Produkte dagegen von autorisierten Verkäufer zerstreut.
Dimensions (Length x Width x Height): 95 x 57 x 8mm
Weight: 26g
